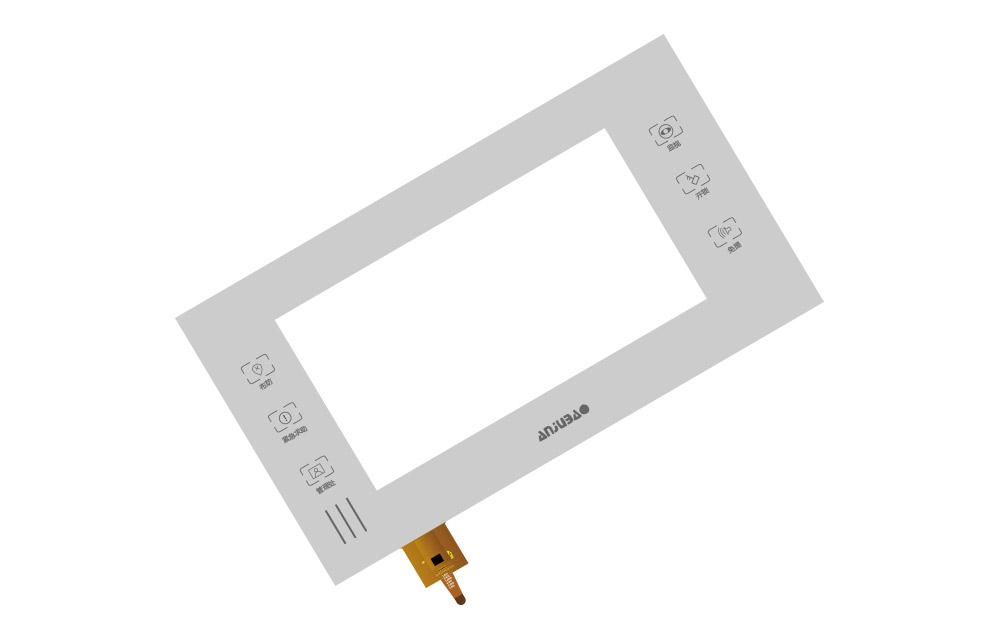

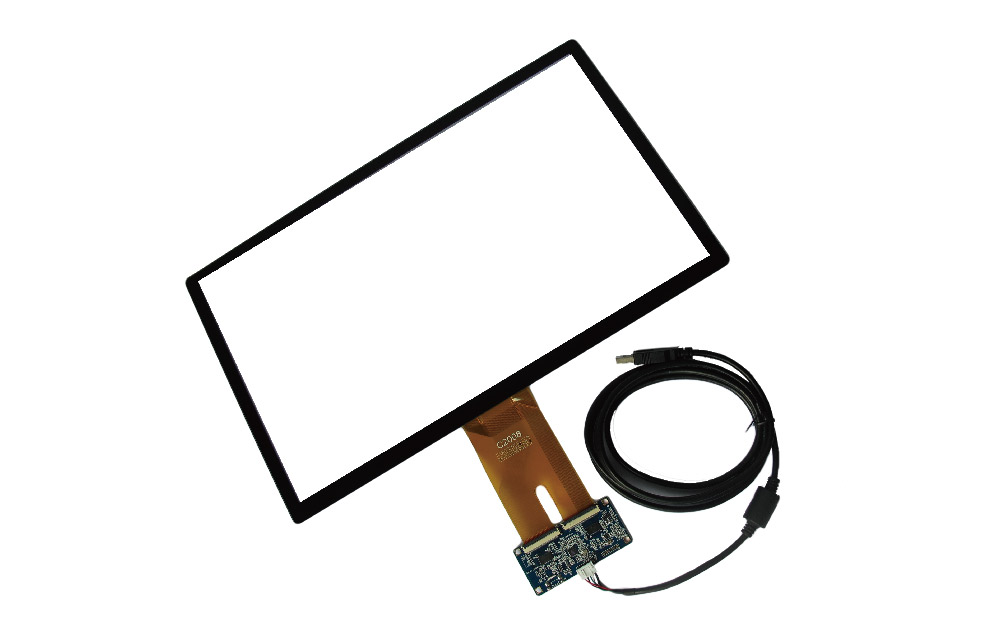

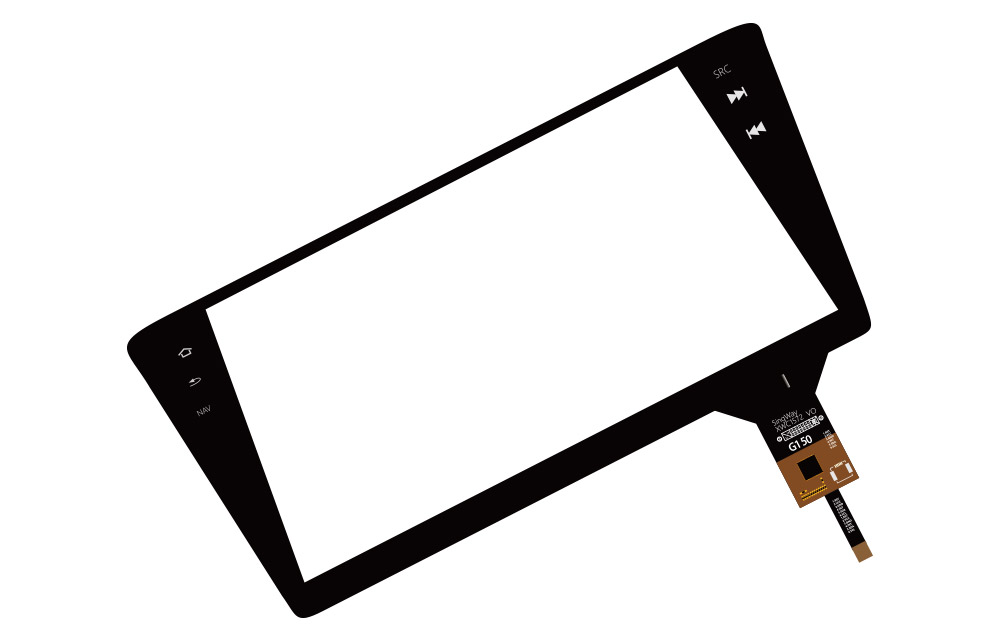

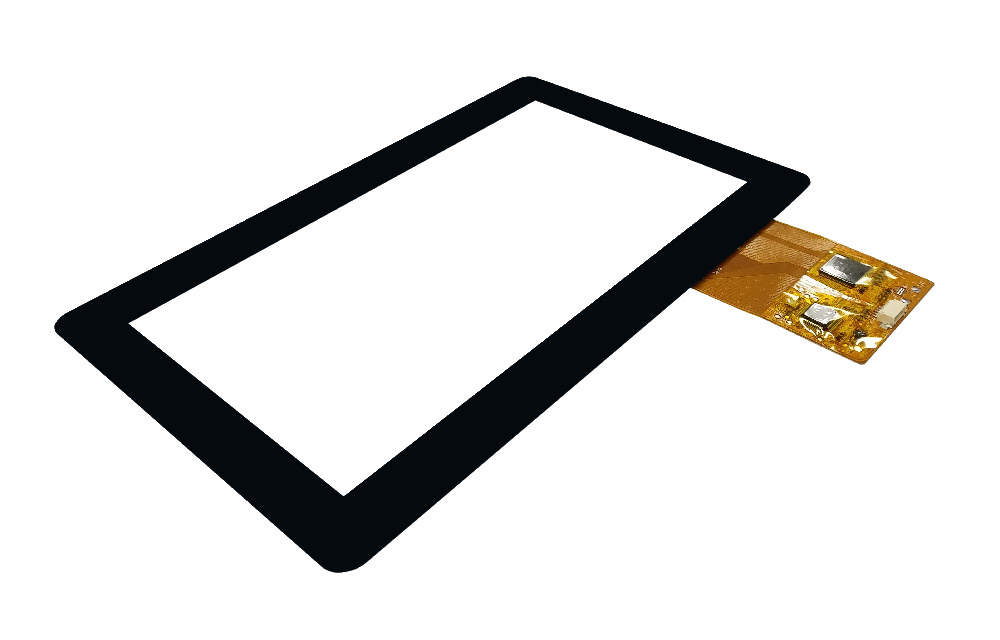

Projected Capacitive Touch Screen
Projected Capacitive Touch Screen
Product Feature
Working Voltage: 2.8V-5.5V DC
Light Transmittance: 86-88%
Structure: PMMA/PET/GLASS+OCA+GLASS/GFF/GF
Input: Stylus or Finger Contact Bounce Time: <3ms Resolution: 4096*4096 (According to the resolution of LCD)
Type of Glass: Common, Chemical, Tempering
Contact point: Max10 Surface Hardness: 6H/7H
Life Expectancy: >100 Million Times
Operation Force: Capacitance Induction, no operating force required
Operation Temperature: -20℃-+70℃
Storage Temperature: -30℃-+80℃
Glass Thickness: 0.4mm 、0.55mm、0.7mm、1.1mm、1.8mm
Interface: IIC、USB
