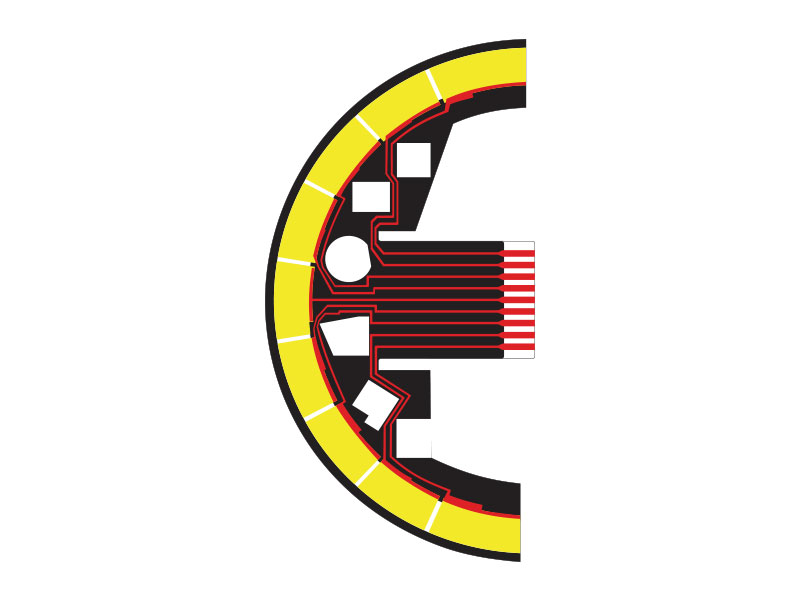

Membrane Switch
Electronic
Membrane Switch
● Circuit Rating: 35V(DC)，100mA，1W
● Resistance: 10Ω-500Ω
● Insulation Resistance: 100MΩ100V
● Dielectric Strength: 250VRms (50-60Hz 1min)
● Contact Bounce: ≤5ms
● Life Expectancy: Flat: ≥5 Million Times Tactile: ≥1 Million Times
Mechanical
● Operation Pressure: Flat 57-284g (2-10oz), Tactile 170-397g (6-14oz)
● Switch Stroke: Flat 0.1-0.5mm, Tactile 0.6-1.5mm
Environment
● Operation Temperature:-40℃-+80℃
● Storage Temperature:-40℃-＋80℃
