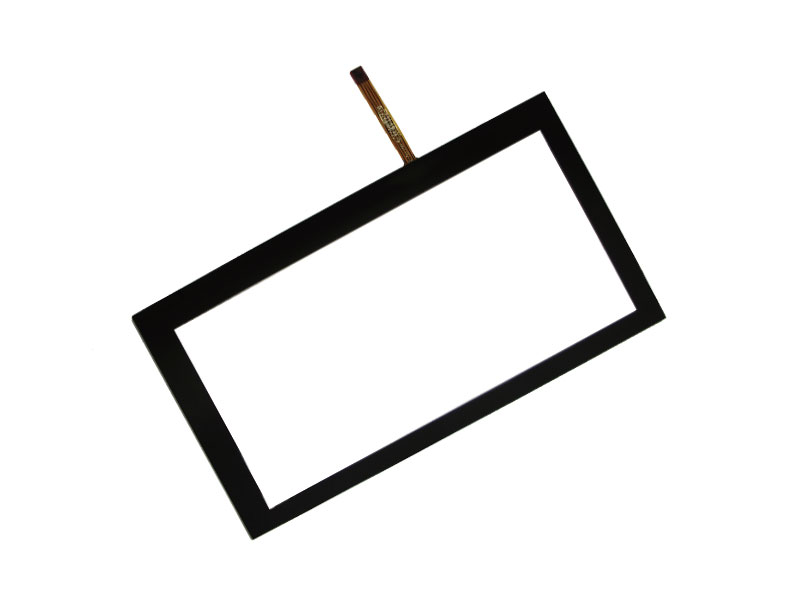

Resistive Touch Screen
Resistive Touch Screen
Product Feature
Circuit Rating: 3.3-5V DC，35mA
Light Transmittance: ITO FILM+ITO FILM+ITO GLASS≥70%
ITO FILM+ITO FILM≥70%
ITO FILM+ITO GLASS≥75%
Overlay+OCA+ITO FILM+ITO FILM+OCA+Support Plate≥68%
PET+OCA+ITO FILM+ITO GLASS≥72%
Contact Bounce Time: <10ms Resolution: 4096*4096 Linearity<1.5% (Special Requirements<1.0%)
Operation Pressure: 60g-150g
Surface Hardness: 3H
Knock Life: > 1 Million Times，5 Wire > 35 Million
Times Stroke Life: > 10 Thousand Times , 5 Wire > 5 Million
Times Operation Temperature: -20℃ to +70℃
Storage Temperature: -30℃ to +80℃
Glass Thickness: 0.55mm, 0.7mm, 1.1mm, 1.8mm, 3.0mm Type of
Glass: Common , Chemical
